Ductile iron metal seated rising stem gate valve
Description
Ductile iron metal seat rising stem(OS&Y) gate valve for water,handwheel operation,working pressure PN10,PN16.
​
Standard:DIN3352 F4,F5,BS5163,EN1074 Part 1,2
Flange drilling to EN1092 PN10,PN16,BS4504 PN10,PN16
Working temperature:0-80℃
Working pressure:PN10,PN16
​
Body:ductile iron GGG50
Wedge:ductile iron GGG50
Stem:2Cr13,SS304,SS316
Wedge seat:brass
Body seat:brass
Wedge nut:brass
gland nut:brass
O ring:NBR
Handwheel:ductile iron GGG50
Coating:epoxy powder,250micron thickness
Size:DN50-DN600

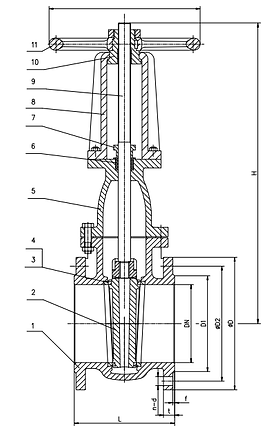

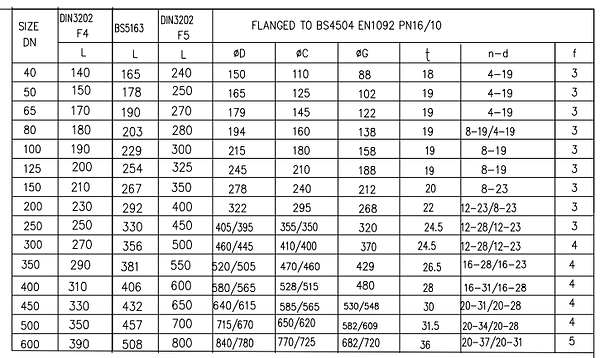

Drawing for metal seat rising stem gate valve
Zhixin Valve Co., Ltd is a leading manufacturer of metal-Seated Rising Stem Gate Valves in China
Zhixin Valve Co., Ltd. is a reputable Chinese manufacturer specializing in industrial valves, with a focus on metal-seated rising stem gate valves. These high-quality valves are designed for critical applications where tight shutoff and durability are essential.
Key Features:
-
Metal-Seated Design: feature metal-to-metal seating, ensuring reliable sealing even under extreme conditions.
-
Rising Stem: The rising stem design provides clear visual indication of the valve position (open or closed).
-
Standards Compliant:
-
DIN3352 F4/F5: These valves adhere to the DIN3352 standards, ensuring consistent performance and compatibility.
-
BS5163: the gate valves meet the BS5163 standard, making them suitable for various industrial and commercial applications.
-
Whether you need valves for water supply, wastewater treatment, or other industrial processes, Zhixin Valve Co., Ltd. delivers robust, precision-engineered solutions.
We can supply below metal seated rising stem gate valve:
Body material:ductile iron GGG50(BS EN 1563),EN-GJS-500-7,ASTM A536 65-45-12
Body and gate seat ring:Brass,Bronze
Working pressure:PN10,PN16
Flange drilling:EN1092-2 PN10,PN16
Size:DN50-DN600,2in-24in
Operation:manual handwheel or gearbox or with ISO top flange
